A key-in-knob (KIK) or key-in-lever (KIL) cylinders is the pin tumbler cylinder seated inside the knob or lever of a cylindrical lockset, driving the latch through a tailpiece rather than a cam. We service it daily across Maryland & Washington DC. Our technical reference, built on 25 years of bench work.

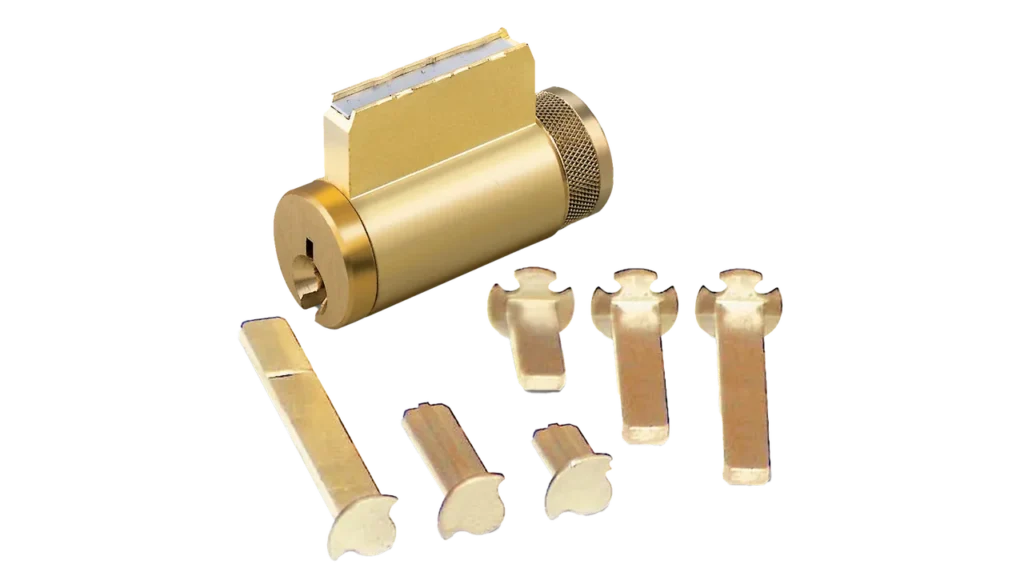

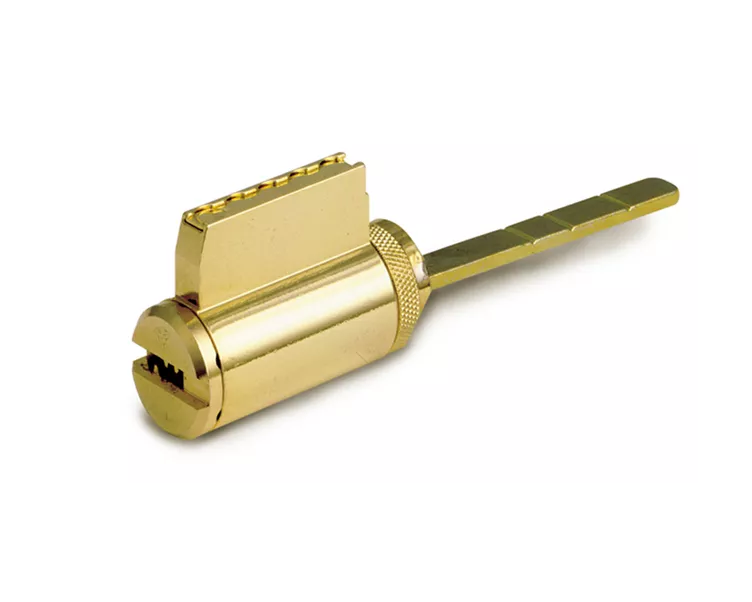

A KIK is a brass plug in a brass or zinc shell, five or six chambers in the bible, and a retainer cap or cap pin at the rear. The tailpiece rotates the chassis retractor. The shell has no threads; the knob sleeve retains it.
Three details decide fit. Shell length and plug face diameter vary by manufacturer, .500 inch being most common. Tailpiece orientation runs horizontal or vertical, with driver bar length matched to the chassis. Pinning follows two families: SC1 at .156 inch spacing, six pins, ten depths; KW1 at .150 inch spacing, five pins, seven depths. District of Columbia commercial suites mostly run SC1.
Three faults fill most of our KIK bench time. Key turns, latch stays put: the tailpiece sheared, rotated ninety degrees, or lost its spring. Plug spins in the shell: retainer cap backed off or cap pin fractured. DIY rekey: a driver pin below the shear line, so the key works one direction only.
Diagnosis happens with the cylinder out of the knob: follower travel, tailpiece engagement, pin stack height per chamber against the bitting. A sheared tailpiece or mis-pinned chamber is bench repairable; a worn plug bore or fractured cap groove is not. Our units carry tailpieces, caps and pinning kits for both keyways.
We replace a KIK when the shell is damaged, the keyway discontinued, or the property moves to a restricted keyway. Matching means confirming lockset model, shell length, plug face, tailpiece type and BHMA finish, typically 626 satin chrome or 605 bright brass. Rekeying: pin to the existing SC1 or KW1 key, build keyed-alike sets, or master key within the six-pin, ten-depth SC1 envelope.
Installation: remove the knob, release the retainer, seat the cylinder with the tailpiece clocked to the chassis, reassemble, cycle both directions, verify retraction and relatch. A 2-1/8 inch bore and 2-3/8 or 2-3/4 inch backset must be square, or the tailpiece binds and the plug wears. Our in-house door expert corrects alignment the same visit.
A KIK is the smallest pin tumbler format we handle, and the one where a wrongly clocked tailpiece fails fastest. We measure before we pin.
We verify tailpiece orientation, driver bar length and shell depth against the host chassis before pinning, so the new cylinder retracts the latch through rotation.
Our locksmiths decode SC1 and KW1 bittings, read chamber wear, and pin replacement plugs to existing keys on site, using the bench in each truck.
Each unit carries bottom pins, drivers, springs, caps, followers and tailpiece assortments for both major keyway families, so most KIK repairs finish in one visit.
Cylindrical locksets need a square 2-1/8 inch bore and true strike alignment. Our door specialist corrects both on the same visit, which prevents tailpiece bind.
Key-in-knob cylinders are among the formats we service. Our technicians repair, rekey, replace and install mortise, rim, interchangeable core and euro profile cylinders across Maryland For identification: lockset model number, a sample key, the old tailpiece. Those three settle fit before ordering.
Straight answers from King Locksmith Technicans to on Key-in-Knob Cylinders questions customers ask us most.
(240) 345-1455
The lockset decides, not the door: shell length, plug face and tailpiece must match the knob model.
Only when tailpiece geometry and shell dimensions match the chassis; KIKs are not universal across brands.
Yes, within keyway limits: six-pin SC1 supports wide systems, five-pin KW1 far less.
Yes, when both share a keyway and depth system; a KW1 plug will not key to an SC1 deadbolt.
